Precision Roll Forming Machine For 20x20mm Welded Square Tube Production With Laser Welding

Brand Name : METALIGN

Model Number : SQ

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Efficient Cold Roll Forming Machine Line for 1.2mm Thick Welded Square Tubes with Laser Welding and Corrective Process

Profile : 20x20mm Square Tube

Key words : Laser Welding/Fly saw cut/Precision Roll Former/Automatic Roll Forming

Application : Construction/Structural Framework/Building Support Systems/Scaffolding/Storage Shelves/Metal Framework

Material type : Cold Rolled Steel

Material thickness : 1.2mm

Main motor power : 11Kw

Forming stations : 14

Driving system : Chain

Frame structure : Wall panel

Production speed : 20m/min (Excluding welding and cutting time)

Machine condition : Brand new

Shaft diameter : 70mm

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

Precision Roll Forming Machine for 20x20mm Welded Square Tube Production with Laser Welding and Flying Saw Cutting

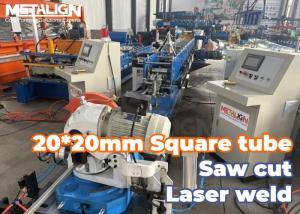

These introductions refer only to the production line and configuration shown in the main image. Each machine is custom-built. Metalign welcomes your inquiry and provides the right production line—forming metal into profiles aligned to your needs.

1. Production Line Overview

  • This cold roll forming line is designed for clients in the construction, industrial machinery, and storage systems sectors. The line excels in producing high-precision welded square tubes with laser welding, offering robust durability and quality. Its automated features make it ideal for large-scale, efficient production.

2. Profile Description

  • This welded square tube is made from 1.2mm thick steel, featuring a precise 20x20mm cross-section. It offers high strength and dimensional accuracy, ideal for structural applications. Its primary uses include scaffolding, shelving, and industrial framework, benefiting from advanced laser welding technology.

3. Production Process

  • 3T Decoiler → Guiding (Strip Type) → Roll Former (14 Stations) → Laser Welding → Correction → Tracking Saw Cutting
  • The process starts with the 3T Decoiler feeding the steel strip, which is guided through the Roll Former for precise 14-stage shaping. The laser welding ensures strong seam integrity. Afterward, the tube is corrected for straightness, and the tracking saw cutting delivers accurate lengths.

4. Technical Parameters

Machine Analysis
3T Decoiler Handles up to 3 tons of steel coils, ensuring steady material feed.
Guiding (Strip Type) Precise material alignment, preventing deformation during shaping.
Roll Former (14 Stations) 14-stage forming provides optimal shaping accuracy and dimensional stability.
Laser Welding Provides high precision welds, minimizing heat distortion and ensuring strength.
Correction Corrects post-welding distortions, ensuring straightness and quality.
Tracking Saw Cutting Ensures precise cutting lengths, improving accuracy for final products.

5. Key Focus

  • Precision Welding: Laser welding ensures strong and precise seams with minimal distortion.

  • High-Quality Tube Formation: The 14-station roll forming process offers perfect shape and size accuracy.

  • Post-Production Quality Control: Correction and tracking saw cutting enhance product consistency and precision.

  • Automated Production: Efficient and consistent operation for large-scale production needs.

6. Production Line Components

Machine Quantity
Decoiler 1 set
Guiding (Strip Type) 1 set
Roll Former (14 Stations) 1 set
Laser Welding 1 set
Correction 1 set
Tracking Saw Cutting 1 set
PLC Cabinet 1 set
Hydraulic Station 1 set
Out Table 2 sets

7. Customization Options

  • This production line can be customized to accommodate different tube lengths, wall thicknesses, and material grades based on specific client requirements. Options for different tube diameters and welding techniques are available, allowing for tailored solutions for structural and industrial applications.


Product Tags:

Laser Welding Precision Roll Forming Machine



20x20mm square tube forming machine



Welded square tube forming machine
